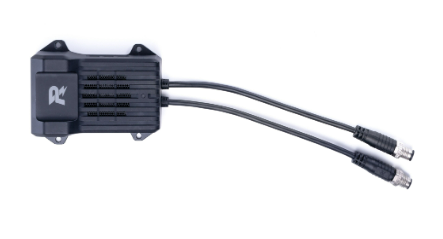

相机图传模块 （发送端） VTM (Transmitter) VT03

产品描述 Product Introduction

RoboMaster相机图传模块（包括发送端和接收端）是一套实时高清图像采集和无线传输系统，具有高清晰度、高帧率、低延迟的特点，并且支持多套相机图传模块同时工作。 RoboMaster相机图传模块发送端应安装在机器人上，具有图像采集、数据传输等功能。 RoboMaster相机图传模块是RoboMaster高校系列赛裁判系统的组成部分，可以为用户提供机器人的第一人称视角。图传模块不可独立使用。

RoboMaster Referee System Video Transmission Module (hereinafter referred to as the "VTM") is an image capture and wireless transmission system featuring high resolution, high frame rate, and low latency. Multiple VTMs can work simultaneously. The RoboMaster Video Transmission Module transmitter should be installed on the robot, and it has functions such as image capture and data transmission. As a component of the RoboMaster University Series Referee System (hereinafter referred to as the "Referee System"), the VTM provides a first-person view of robots. The VTM cannot be used independently.

RoboMaster Video Transmission Module (hereinafter referred to as the "VTM") (including transmitter and receiver) is a real‑time, high‑definition image capture and wireless transmission system that delivers high resolution, high frame rates, and low latency, and supports simultaneous operation of multiple VTMs. The transmitter is mounted on the robot and is responsible for image capture and data transmission. The RoboMaster VTM is part of the RMU Referee System and provides users with a first‑person view (FPV) of the robot. The VTM is not a standalone device and cannot be used independently.

技术参数 Technical Specifications

•工作环境温度：-10℃至40℃

•工作频段（中国及其它非日本地区）：5150-5250 MHz（仅限室内使用），5732-5829 MHz

•工作频段（日本地区）： 5150-5250 MHz， 5650-5755 MHz

•传输图像分辨率：最大 1920× 1080

•传输图像帧率：最大 60 Hz

•端到端延时：< 90 ms（实验室环境）

•最远传输距离：100 m（无遮挡时）

•重量：约 121 g

•供电电压：12 V

•工作电流：665 mA

• Operating temperature: -10°C to 40°C
• Operating frequency bands (China and regions other than Japan): 5150–5250 MHz (indoor use only), 5732–5829 MHz
• Operating frequency bands (Japan): 5150–5250 MHz, 5650–5755 MHz
• Video transmission resolution: up to 1920 × 1080
• Video transmission frame rate: up to 60 fps (60 Hz)
• End-to-end latency: < 90 ms (laboratory conditions)
• Maximum transmission range: 100 m (line of sight)
• Weight: approx. 121 g
• Supply voltage: 12 V
• Operating current: 665 mA

下载 Download

注：以下文件提供中英双语。

Note: The following documents are available in both Chinese and English.
