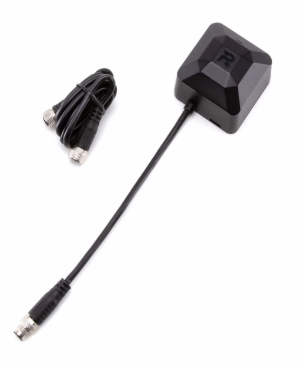

定位模块 UW01

产品描述 Product Introduction

定位模块与场地基站进行通信实现定位，为比赛地理围栏提供依据，定位数据作为比赛客户端小地图的数据来源，同时通过裁判系统电源管理模块的“用户接口”输出，供参赛队使用，比赛版本和销售版本接口和数据格式不同。

The Positioning System Module communicates with the Battlefield base station to calculate the position, providing information for the Geo-fence Area. The position data, which is used by teams, is the data source of the Client mini-map and is output through the User Interface of the Power Management Module. The interface and data format of the Competition version and Sales version are different.

技术参数 Technical Specifications

• 额定电压：12v
• 尺寸：45.4*45.4*33.5mm
• 重量：42.3g
• Rated Voltage: 12 V
• Dimensions (LWH): 45.4 x 45.4 x 33.5 mm
• Weight: 42.3 g
