产品描述 Product Introduction

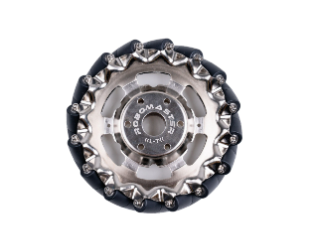

RoboMaster麦克纳姆轮外形直径为152.5mm，轮毂为钣金件焊接而成，整体外表镀亮镍。具有结构强度高，便于安装，外形美观等特点。分为左旋和右旋。
RoboMaster Mecanum Wheel features an overall diameter of 152.5 mm. Its hub is constructed from welded sheet metal components with a bright nickel-plated finish. Characterized by high structural strength, easy installation, and aesthetic appeal, the wheel is available in both left-handed and right-handed rotation configurations.
技术参数 Technical Specifications
轮直径：152.5mm
轮宽：45mm
重量：590g
每个轮子由16个橡胶小胶轮装配而成
轮毂中心有6个直径为5.2mm的安装孔， 轮毂中心厚度为28mm
Wheel Diameter: 152.5 mm
Wheel Width: 45 mm
Weight: 590 g
Construction: Each wheel is assembled from 16 individual rubber rollers
Hub Specifications:
- Features 6 mounting holes with a diameter of 5.2 mm
- Center thickness: 28 mm
下载 Download
文档 Documentation
| 发布日期 Release Date | 文件 Docs |
|---|---|
| 2020年7月24日 July 24, 2020 | 注：以下文件提供中英双语。 Note: The following documents are available in both Chinese and English. RoboMaster Mecanum Wheel User Guide RoboMaster 麦克纳姆轮 使用说明.pdf |
其他 Other
| 发布日期 Release Date | 文件 Docs |
|---|---|
| 2020年7月24日 July 24, 2020 | RoboMaster Mecanum Wheel (Right) STEP right-threaded_mecanum_wheel.stp |
| 2020年7月24日 July 24, 2020 | RoboMaster Mecanum Wheel (LEFT) STEP left-threaded_mecanum_wheel.stp |
