产品描述 Product Introduction

RoboMaster 飞镖触发装置是一款专为 RoboMaster 比赛中飞镖系统设计的交互道具。将触发装 置安装在飞镖头部，当其撞击到 RoboMaster 飞镖检测模块时，检测模块接收并解码触发装置 发出的红外信息以确认攻击来源。触发装置在飞镖飞行过程中会持续发出红色或蓝色可见光， 用于区分飞镖阵营并指示飞行轨迹。 触发装置采用中空结构设计，可安装合适尺寸的摄像头，从而结合视觉算法大幅提高飞镖的命 中率。 TPU 材质的外壳，可在飞镖撞击目标时，有效起到缓冲、保护摄像头及飞镖内部结构的作用。

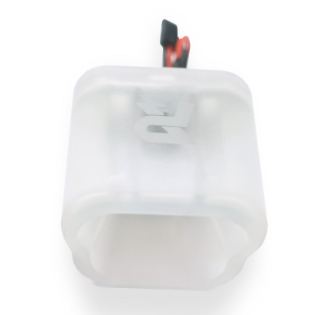

The RoboMaster Dart Trigger is an interactive device specifically designed for the dart system in RoboMaster competitions. Installed at the head of the dart, it emits infrared signals upon impact with the RoboMaster Dart Detection Module. The module then receives and decodes these signals to identify the source of the attack. During flight, the trigger continuously emits red or blue visible light, allowing for faction identification and trajectory tracking.

Featuring a hollow structural design, the trigger can accommodate a camera of suitable dimensions. This integration, combined with visual algorithms, significantly enhances the dart's strike accuracy. The housing, constructed from TPU material, provides effective cushioning upon impact, protecting both the internal camera and the dart's structural components.

技术参数 Technical Specifications

输入电压： 5 V

输入功率 ：* 1.5 W

发光颜色： 红 / 蓝

结构材质： TPU

重量： 20 g

工作环境温度： 0 至 55℃  （室温 25℃、通风良好的实验环境下测得）

Input Voltage: 5 V DC

Input Power: 1.5 W (max)

LED Color: Red / Blue

Housing Material: TPU

Weight: 20 g

Operating Temperature: 0 to 55 °C

Note: Tested at an ambient temperature of 25 °C with adequate ventilation.
